Bamboo Plywood – Main Technical Specifications
Board Size (L×W×T):2440 mm × 1220 mm × 5 mm to 30 mm
Density:0.8 g/cm³ ~ 0.9 g/cm³
Moisture Content:≤ 10%
Modulus of Rupture (MOR):≥ 100 MPa
Modulus of Elasticity (MOE):≥ 10,000 MPa
Production Flow
Mechanical weaving of bamboo mats → Drying of bamboo mats → Glue application → Mat lay-up → Hot pressing → Edge trimming → Sanding → Grading & inspection → Packaging & warehousing
The technology and equipment for bamboo mat plywood and bamboo woven plywood are fully mature. The equipment configuration for bamboo panel production is relatively simple, with low investment.
Main Equipment
Bamboo mat weaving machine
Bamboo mat dryer
Hot press for bamboo mat plywood
Loader & unloader for plywood
Return conveyor for heating plates
Longitudinal & transverse edge sawing machine
Sander

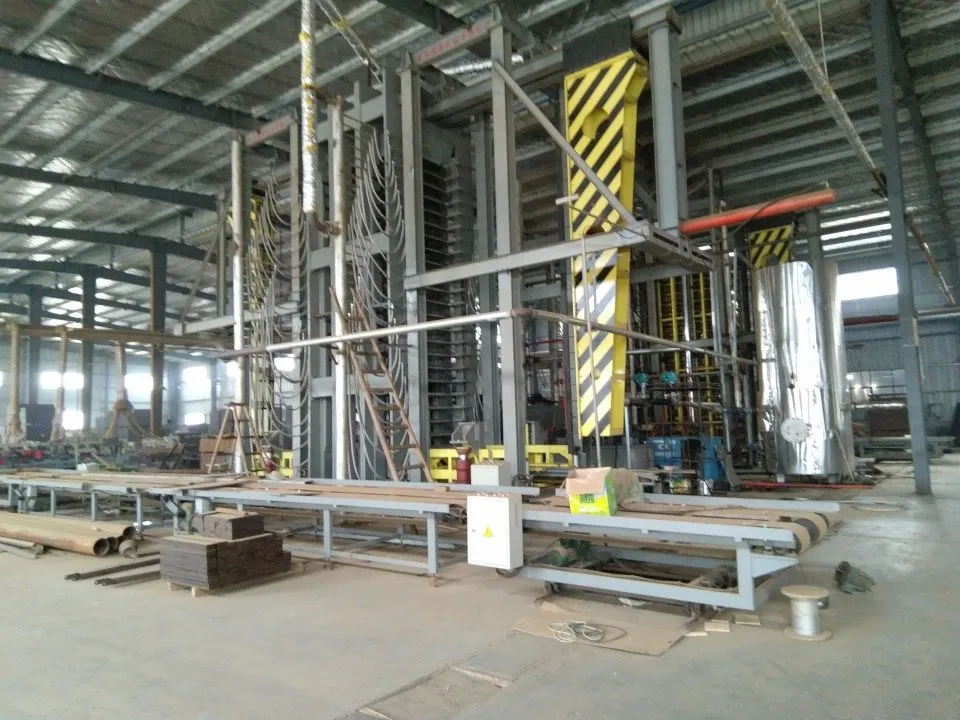

Key parameters of the hot press:
Total pressure: 19,500 kN
Number of layers: 15 layers
Layer spacing: 150 mm
Hot platen size: 2650 mm × 1370 mm
FAQ
Q1:Can you customize products for clients?
A1: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.
Q2:What about your products quality?
A2:The whole production procedure will be under regular inspection and strict
quality control. The complete machine will be tested to make sure they can work very well before being out of factory. The testing video and pictures will be available before delivery.
